Delta Current Control module

Installation

Mounting the control unit

Find a flat surface in the engine compartment, the preferred area being the radiator support sheet metal near the battery. Drill four 1/8" holes either by the dimensions shown in figure 2 or by using the control unit as a template. Drill two more 1/8" holes at about 8" centers as shown in figure 2. If installed in a detailed engine compartment, insert the four grommets in the mounting holes of the control unit to protect painted surfaces. Mount the control unit using four self tapping screws and flat washers.

Control unit wiring

High current wiring

  1. Using the supplied wiring loom, secure one connectored end of the red wire on the output terminal of the controller using one star washer and brass 6-32 hex nut. A snug fit is all that is needed (5-in-lb), Be careful not to overtighten. Route the wire to the positive Headlamp wire, cut and trim the wire and install the wire splice.

  2. Place one end the black wire on the GND terminal of the controller. Route and connect the wire to a nearby ground,

  3. Place the connectored end of the remaining red wire on the input terminal of the controller and secure the wire with one star washer and brass 6-32 hex nut. Route the wire to the positive battery terminal or a nearby junction box. Attach the fusible link and connect, preferably to the positive battery terminal. Do not connect to the starter end of the battery cable. Use the supplied wire hold downs, along with two self tapping screws and flat washers to secure the wires.

Auxiliary wiring

Ignition input

Connect the blue ignition input wire of the harness to the unit and to any source that is higher than 6 V whenever the ignition is on.

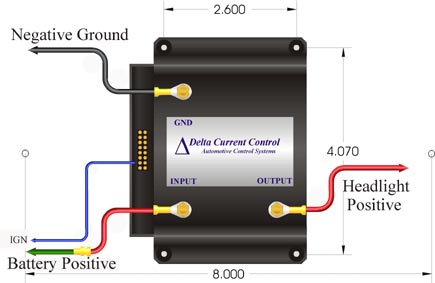

                                          Figure 1



Parts List

 1   control unit

 1   high current wiring harness

 1   low current wiring harness

 1   fusible link

 1   wire splice

 2   wire hold downs

 3   internal star washers

 3   6-32 brass nuts

 6   # 6 self tapping screws

 6   flat washers

 4   3/16 rubber grommets







Testing the unit

Start the car. The headlights should light at approximately 50% brightness, turn on the headlights and check for full brightness.
